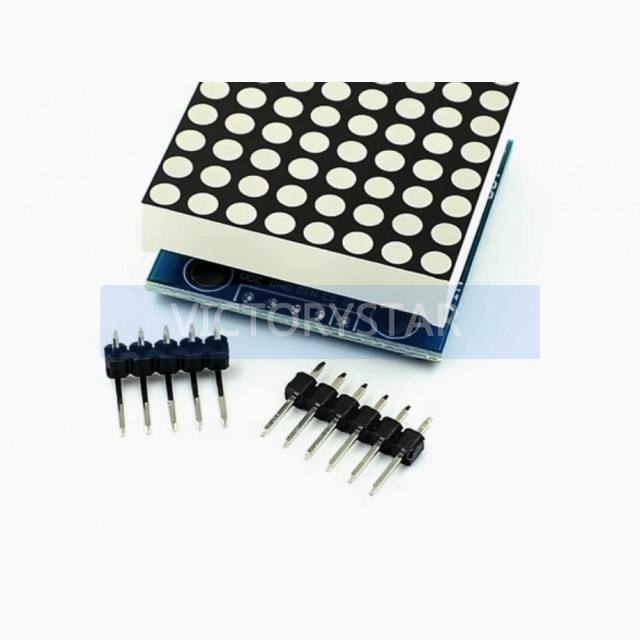

1248 bit MAX7219 dot matrix module control microcontroller controls driving LED display 16MAX7219 is an integrated serial inputo

Name: 1248 bit MAX7219 dot matrix module control microcontroller controls driving LED display 16MAX7219 is an integrated serial inputo
Brand: Shenzhen VictoryStar Technology.,Limited
SKU: 1601433216583
Price: 10.23 USD
Availability: InStock

Aún no hay reseñas

Shenzhen VictoryStar Technology.,Limited

5 años

Características clave

Marca

standard

Número de Modelo

MAX7219

Tipo de montaje

standard

Código de fecha de fabricación

4232

Lugar del origen

China

Tipo

Módulo

Descripción

MAX7219 is an integrated serial inputoutput common cathode display driver that connects a microprocessor with an 8bit 7segment digital LED display as well as a bar chart display or 64 independent LEDs It includes an onchip Btype BCD encoder multichannel scanning circuit segment word driver and an 8 8 static RAM for storing each data There is only one external register used to set the segment current of each LED A convenient four wire serial interface can connect all generalpurpose microprocessors Each data can be addressed without rewriting all displays during updates MAX7219 also allows users to choose whether to encode or not to encode each data

Aplicación

Electronic Product

Serie

Fixed inductor

Características

MAX7219

Aplicación funcional

Digital tube/LED/dot matrix moduleModule

Voltaje de salida

20251116 bits

Tipo de salida

Estándar
