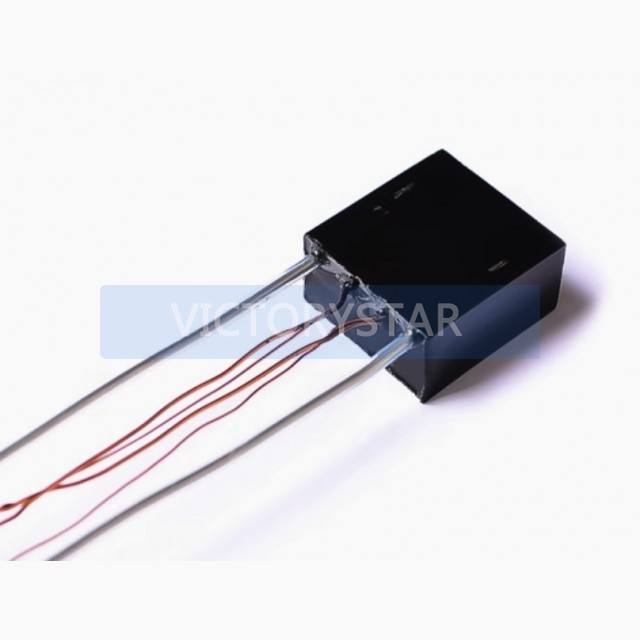

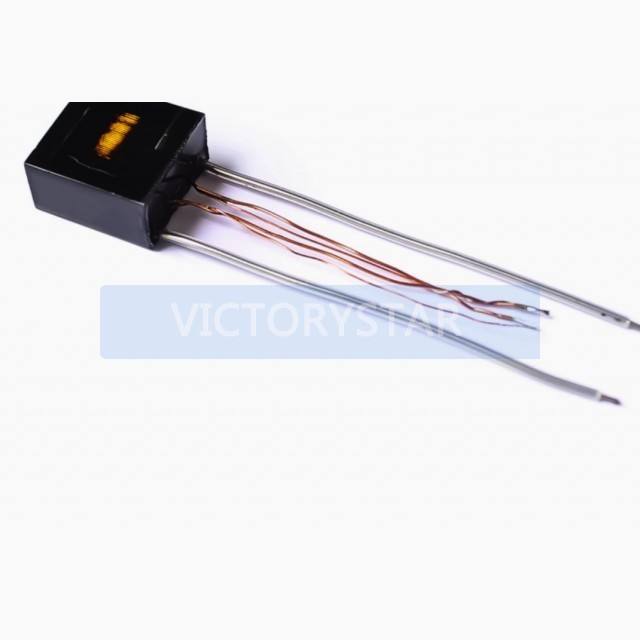

15KV arc ignition highvoltage package boost coil transformer electronic pulse lighter cigaThe product has been insulated and sea

Boost high-voltage packageModule

Estándar

DC

Módulo

Fixed inductor

standard

Electronic Product

0

2025110

The product has been insulated and sealed for easy use Plasma lighter endnote The primary winding of a transformer has two windings a main winding thick copper wire and a feedback winding thin copper wire The secondary output is high voltage transparent single core wire When the secondary high voltage output of this transformer is not connected to a high voltage rectifier diode or capacitor the output is highfrequency high voltage electricity When it is penetrated in the air it is a light purple arc without cracking sound but the temperature is very high and it can easily ignite paper plastic and even very thin iron wire such as the scene of thin iron wire burning in oxygen during middle school chemistry experiments but not as intense as in oxygen If several high voltage capacitors and high voltage rectifier tubes are connected to the output end to form a voltage doubling circuit DC high voltage can be generated and a negative ion generator can be made Attention This transformer is also suitable for 12V voltage but the base feedback resistance needs to be correspondingly increased to around 150 15K The resistance value should be adjusted from high to low and should not be too small otherwise it will burn the transistor or transformer and should not be too large which will affect the output effect or cause the transistor to work in a non switching state and cause severe heating Note The transformer is designed for a 15KV output and the maximum output should not exceed 15KV which is 15 centimeters of arc Higher output voltages are highly likely to damage the transformer

standard

China

1pcs

90Days

Pleases Contact

IC Intergrated Circuit

DHL\UPS\Fedex\EMS\Sea\Train

Paypal\TT\ Trade Assurance

Yes

ESD/Vacuum/Foam/Cartons

Artículo individual

30X30X30 cm
