Atributos
standardMarca
LEDNúmero de Modelo
standardTipo de montaje
1262Código de fecha de fabricación
ChinaLugar del origen
KitTipo

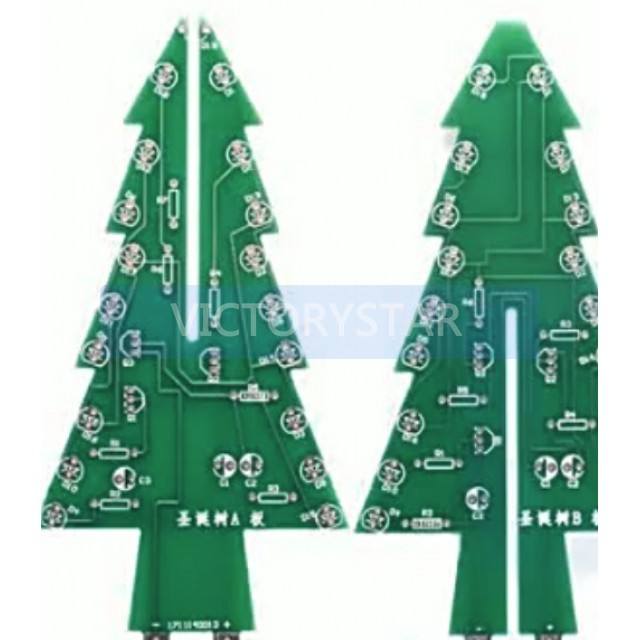

Descripción:DTY 3D Colorful Christmas Tree Working voltage DC455V Note This product is a DIY product and requires a certain level of electronic knowledge The flashing Christmas tree circuit is mainly composed of a multi harmonic oscillator circuit formed by three transistors D19 is a seven color lightemitting diode that can emit seven colors of light when powered on This production has a high success rate and strong interest suitable for electronic enthusiasts to install and learn This kit has 3 circuit boards When installing pay attention to the direction of the LED and transistor insertion The color of the LED can be combined by yourself After insertion leave about 6mm of pins and bend them parallel to the circuit board When soldering control the soldering time to avoid damaging the LED due to excessive soldering time Pay attention to the welding of D19 on the JC162 board After welding the components on JC161 and JC162 respectively insert them correctly in a cross pattern and then insert them into the base plate When inserting make sure that the power polarity marked on the JC161 and JC162 boards is consistent with that on the base plate and then weld and fix them correctly After installation if there are no errors the circuit can be powered on to test its effectiveness There are two options for power supply in this circuit which can be powered by three No 5 batteries If no batteries are needed the circuit can also be powered by connecting a USB dedicated cable optional to a mobile phone charger 5V
Aplicación:Electronic Product
Serie:Fixed inductor
Características:DIY Three Color Christmas Tree, Transparent Christmas Tree Shell, DIY Colorful Christmas Tree, DIY Three Color Christmas Tree with Shell, DIY Colorful Christmas Tree with Shell
Aplicación funcional:DIY experimental weldingDemoboard
Voltaje de salida:2025110
Tipo de salida:Estándar
MOQ:1pcs
Warranty:90Days
More details:Pleases Contact
CNC power supply:IC Intergrated Circuit
ATmega328P:DHL\UPS\Fedex\EMS\Sea\Train
Payment:Paypal\TT\ Trade Assurance
ROHS:Yes
Packing:ESD/Vacuum/Foam/Cartons
Lead time:1-3 Working Days
standard:standard
