Atributos
13.56 MHz & 125 kHzFrecuencia
ANDROID 10, Android 11, Android 9,0, IOS, Linux, Ventanas 10, Ventanas 7, CE de las ventanas, Ventanas XPSistema de acción
UL294/cUL**** (US), FCC Certification (US), IC (Canada), CE (EU), C-tick (Australia, New Zealand), SRRC (China), MIC (Korea), NCC (Taiwan), iDA (Singapore), RoHS, FIPS-201 Transparent FASC-N ReaderProtocolo
1-9 cmDistancia de lectura
United StatesLugar del origen
ABSMaterial
Tarjeta de soporte:Iclass escondió, MIFARE, Tarjetas de proximidad
Marca:HID
Color:Negro, Rojo

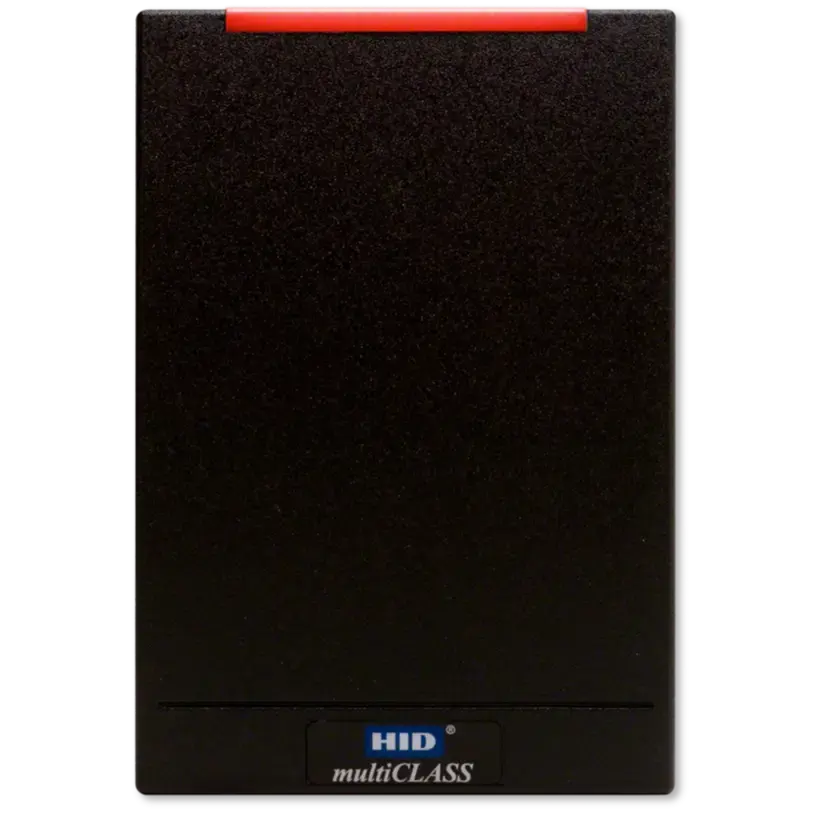

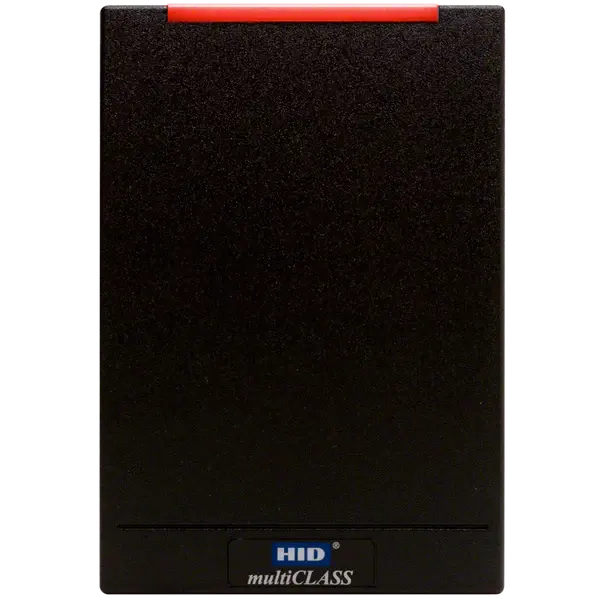

Product Name:HID MultiCLASS SE Readers RP40
Read range:1-9 cm
Mounting:Wall Switch Size
Dimensions:8.4 cm x 12.2 cm x 2.4 cm
Product Weight (Pigtail):7.8oz (222g)
Product Weight (Terminal Strip):7.6oz (216g)
Operating Voltage Range:5-16 VDC, Linear supply recommended
Current Draw - Standard Power Mode (mA):75
Current Draw - IPM Mode (mA):35
Peak Current Draw - Std. or IPM Mode(mA):110
Operating Temperature:-31 to 150 degree F (-35 to 65 degree C)
Storage Temperature:-67 to 185 degree F (-55 to 85 degree C)
Operating Humidity:5% to 95% relative humidity non-condensing
Environmental Rating:IP55
Transmit Frequency:13.56 MHz & 125 kHz
Cable Distance:Wiegand/Clock-and-Data Interface 500ft (150m) (22AWG)
Panel Connection:Pigtail or Terminal Strip
Housing Material:UL94 Polycarbonate
Unidades de venta:Artículo individual
Peso bruto:2.000 kg
