Atributos
RX12X-ASKNúmero de Modelo
DigimoreMarca

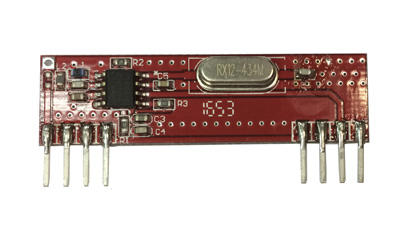

RX12-434MCircuito integrado
Iot, remote controlUso
Módulo de RFTipo
Taiwan, ChinaLugar del origen
Tipo de Proveedor:ODM

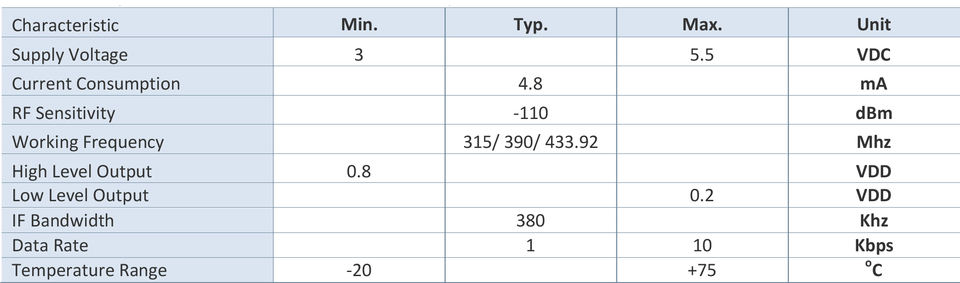

Demodulation:ASK
Frequency range:315/390/433.92Mhz
Operating Voltage:3~5.5VDC
High Sensitivity:-110dBm
Current Consumption:4.8mA
High Level Output:0.8 VDD
Low Level Output:0.2 VDD
IF Bandwidth:380 Khz
Data Rate:1Kbps
Temperature Range:-20 ~ +75 degree C
