Atributos
Placa de fibra de carbono, Aleación de aluminio, Acero inoxidableMaterial
SíPrivado molde
ChinaLugar del origen
FPVLOADMarca
Mark4 V2 - 7 8 9 10 inch FPV frame with 3D printed partProduct name
X-typeFrame type:
Base plate thickness::2.5MM (customizable for different thicknesses)
Top plate/connecting plate thickness::2.0MM (customizable for different thicknesses
Material::3k carbon fiber

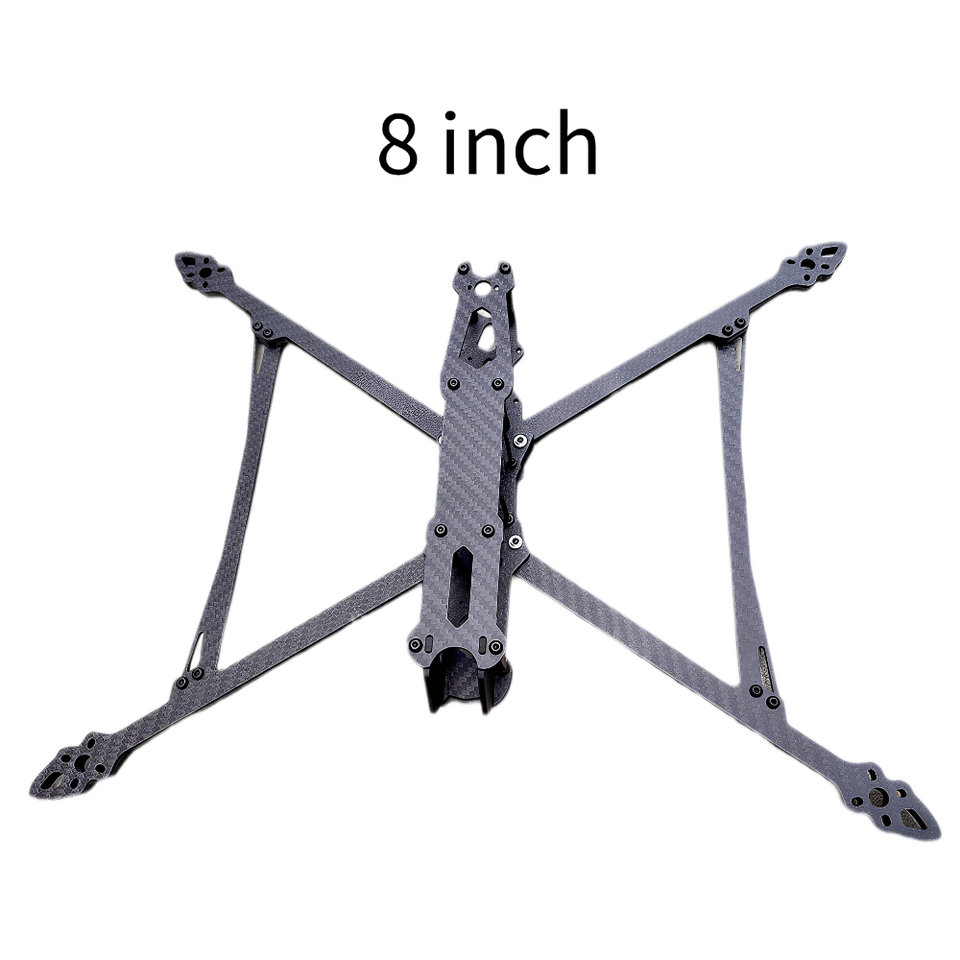

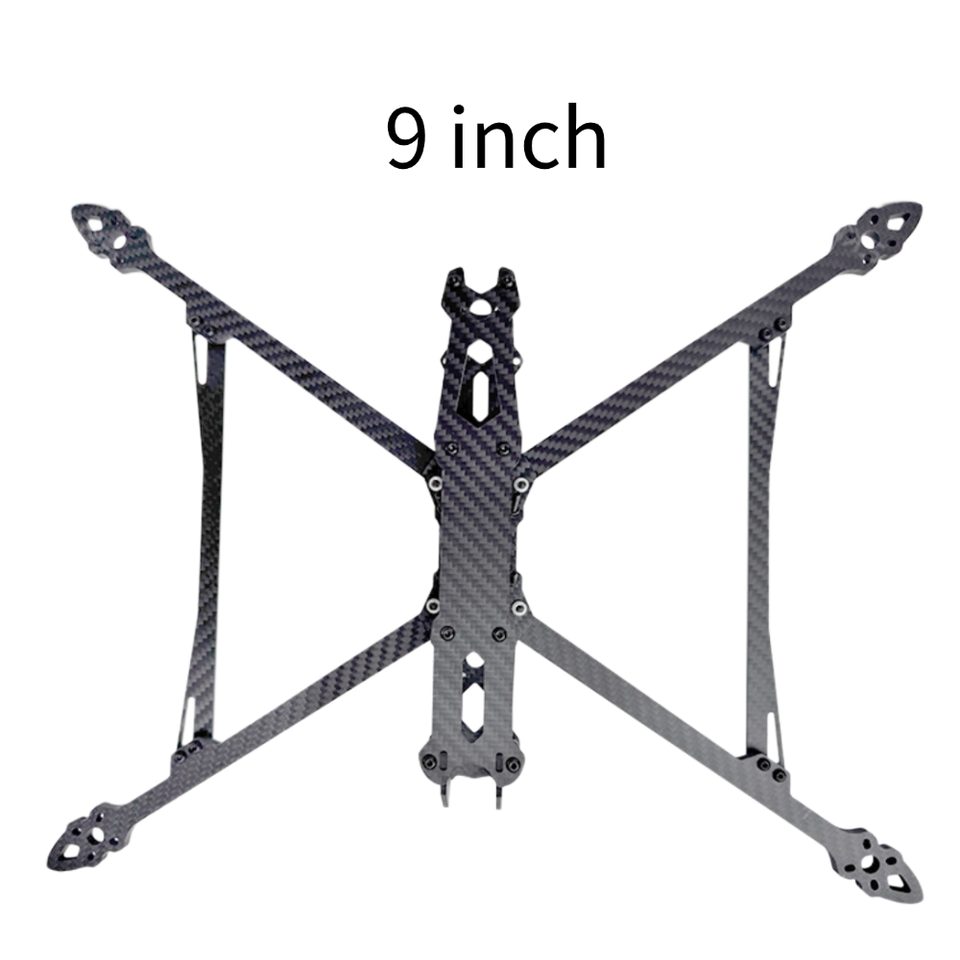

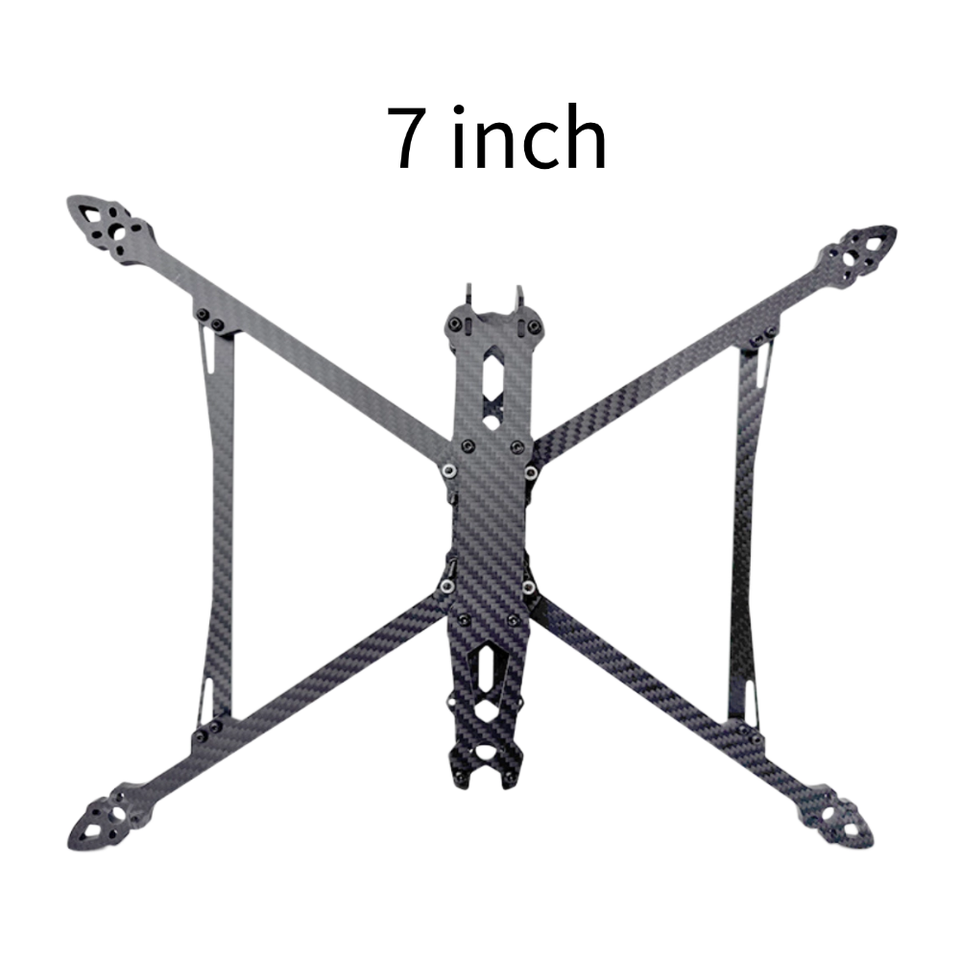

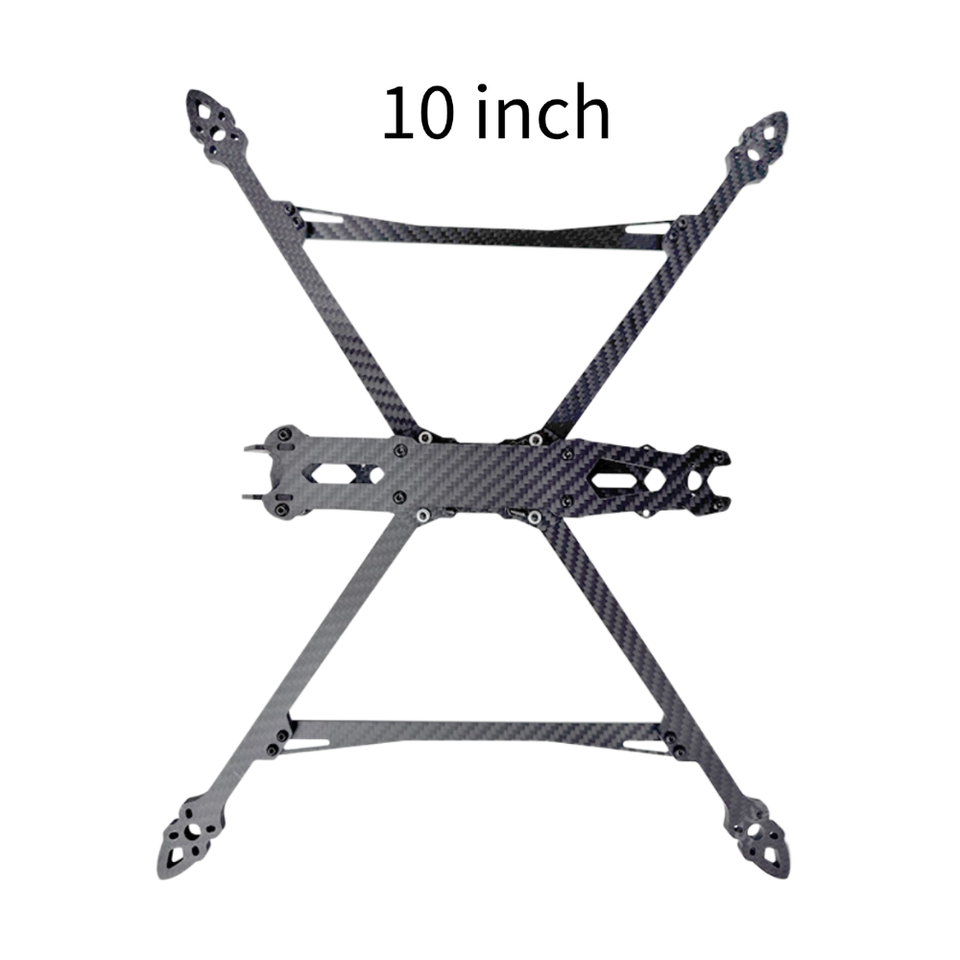

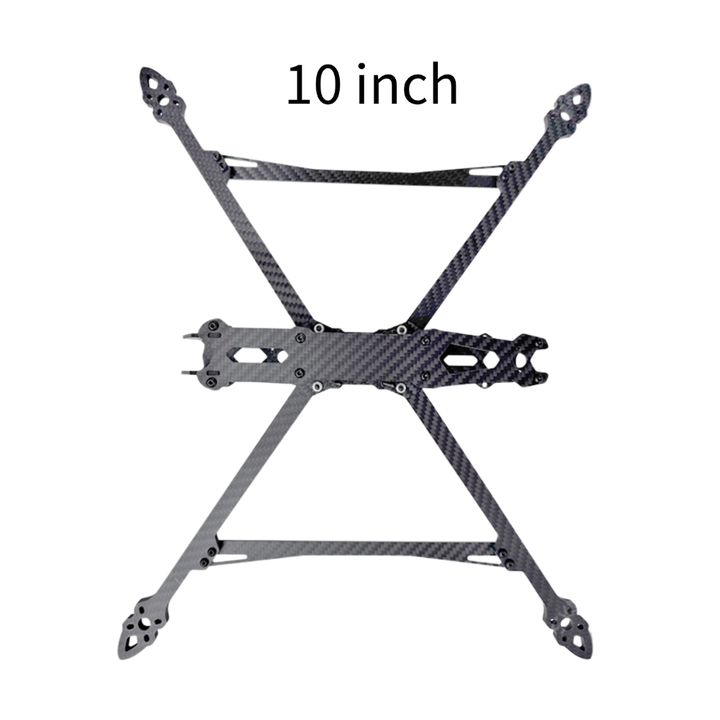

Wheelbase:7inch 315mm/8inch 367mm / 9inch 387mm /10inch 427MM
Medium plate thickness::2.0MM (customizable for different thicknesses)
Arm thickness::5.5MM (customizable for different thicknesses) mounting hole distance
Flight tower::30.5*30.5MM
Image transmission::20*20--30.5*30.5MM
Motor::19MM
Camera::19MM
Internal space height::25MM
