Atributos
Tesla, CCS2Tipo
NuevoCondición
Hunan, ChinaLugar del origen
Para la fabricaciónPropósito
ST-E054Número de Modelo
ZSWINNERMarca

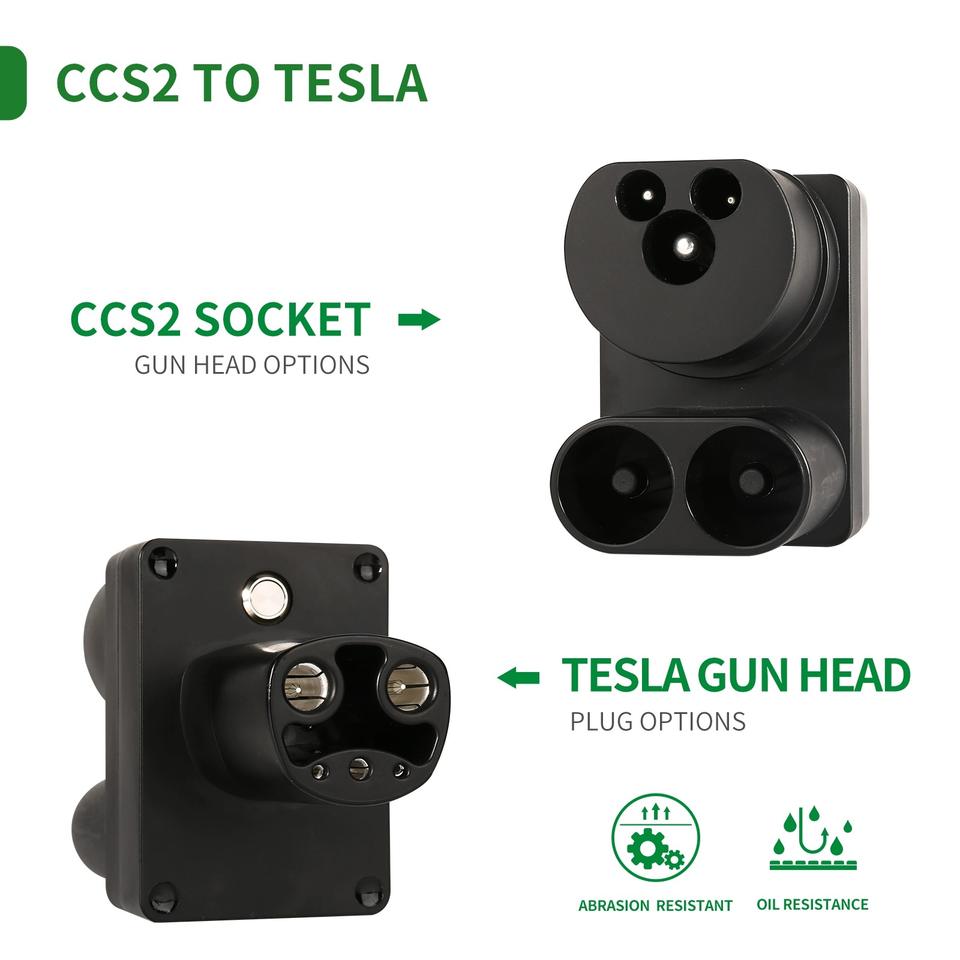

Product Name:CCS 2 To Tesla Charging Adapter
Charging Standard:Tesla
Rated current:150-400A
Rated voltage:500-1000V
Insulation resistance:>100MΩ
Contact resistance:Maximum 0.5mΩ
Terminal temperature rise:<50K
Dielectric voltage withstand test:2000V
No-load insertion and removal life:>10000 times
Insertion and removal force:45N<F<80N
Operating temperature:-30℃~50℃
Housing material:Flame-retardant material UL94V-0
Conductor material:Silver-plated copper alloy
Max power:250KW
Unidades de venta:Artículo individual
Tamaño del paquete:15X7X10 cm
Peso bruto:0.770 kg
