Single key bistable one start stop selflocking relay module microcontroller controlled 5V1Product use Press the trigger button t

standard

APP

standard

3024

China

Component&Part

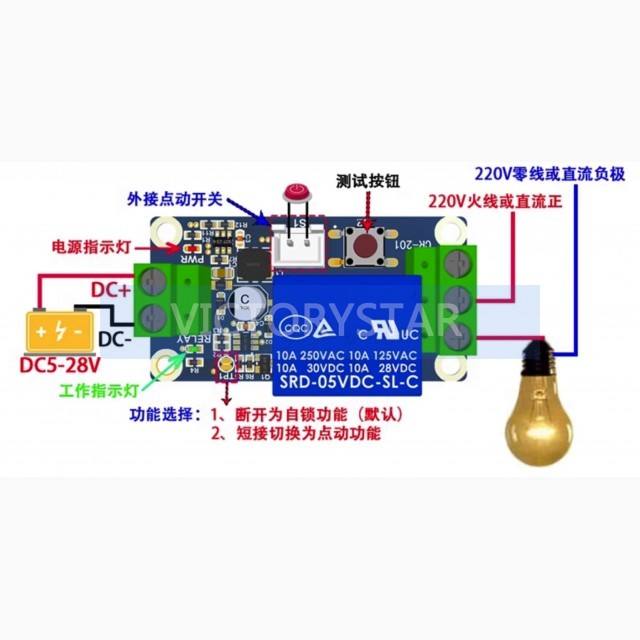

Product use Press the trigger button to lock the relay in and out Press it again to disconnect the relay It can also be connected to an external trigger switch or triggered with a low level Control of household appliances control of various household lighting fixtures control of factory equipment used for controlling various low current high voltage and highpower products nbsp brnbsp Product features 1 Adopting doublesided board design PCB 2 Using a microcontroller for control it has stable and reliable performance strong antiinterference ability no false triggering and far superior performance compared to CD4013 3 A highpower voltage regulator provides sufficient and stable voltage and has sufficient heat dissipation holes to ensure longterm stable and reliable operation of the product 4 Equipped with anti reverse power protection diodes shortterm reverse power supply does not cause any damage to the product 5 This product has three power versions to choose from 5V 12V and 24V 6 Use genuine Songle relays to control the load which can withstand both 250V 10A AC and 30V 10A DC loads 7 Equipped with a touch switch for product testing directly verifying the stability of the product 8 The trigger can also be connected to an external trigger switch and the product is equipped with a wiring socket and leads making it more convenient to use 9 Other sensor modules can also be used for triggering as long as it is a lowlevel trigger it is effective and has more expanded functions brnbsp Electrical parameters Supply voltage 5V 12

Electronic Product

Fixed inductor

0

RELAY MODULEModule

2025110
